Iris ModulesID: 40737640

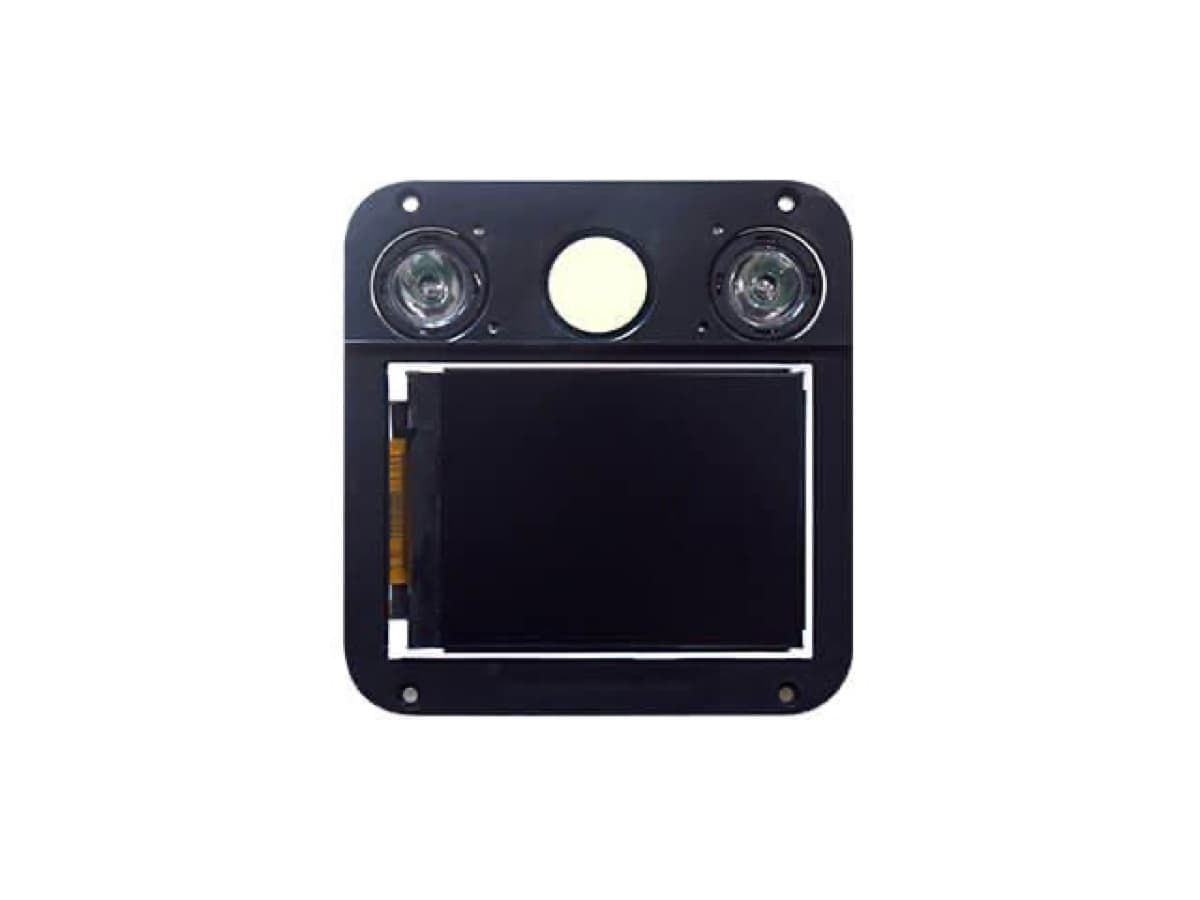

MD20-5000 Iris Recognition Module – 700nm-900nm Wavelength Component with 72.5mm×77mm×28mm Dimensions
The MD20 is a USB iris scanner module supporting iris capture, recognition, and local/remote matching. Compact design enables seamless integration into OEM devices. Features 850nm infrared imaging, 640x480 resolution at 25fps, and operates across 0-6000 Lux lighting conditions.
Key Specifications
Power3.5W
Working Temperature-10°C to 55°C
Connection MethodUSB 2.0
Recognition ModeAny Single Eye / Dual Eye
ModelMD20-5000
Product Size (L X W X H)72.5mm X 77mm X 28mm
Working Distance250mm - 300mm
Product FunctionIris Collection, Iris Recognition
ISO 9001NIST TestedMPS Certified
About This Product
The MD20 is a USB iris scanner module supporting iris capture, recognition, and local/remote matching. Compact design enables seamless integration into OEM devices. Features 850nm infrared imaging, 640x480 resolution at 25fps, and operates across 0-6000 Lux lighting conditions.
Category: Iris Modules
Brand: HOMSH / OpticIris
Origin: Wuhan, China
Order Information
Min. Order1 Unit
Delivery Time5-8 Working Days
PaymentT/T (Bank Transfer)
CertificationISO 9001
