MD30 Iris Recognition Module - I2C-Enabled Unit with Arduino Algorithm & 10000-Person Internal Storage — Iris Modules by HOMSH Technologies
1 / 5
Iris ModulesID: 40588422

MD30 Iris Recognition Module - I2C-Enabled Unit with Arduino Algorithm & 10000-Person Internal Storage

The MD30 is an advanced iris scanner module with enhanced recognition capabilities. Supports iris capture, template matching, and image matching via USB connectivity. Built for integration into access control systems, attendance devices, and identity verification terminals. Operates reliably across -10C to 55C temperature range.

Key Specifications

Operating Temperature-10°C to 55°C
Operating Distance300mm~500mm
Product Dimensions (L*W*H)80*40*30mm
Power5W
Connection InterfaceUSB
Product FunctionIris Collection, Iris Recognition
Weight (Typical)55g
Recognition ModeSingle eye / Both eyes
Product FunctionsIris capture, iris recognition
ConnectionUSB
Power Consumption5W
Dimensions (L×W×H)80 × 40 × 30mm
Weight55g
Working Distance300-500mm
Image Resolution640 × 480
Frame Rate25 fps
Imaging Band700-900nm
Enrollment Time1 second
Recognition Time1 second
Matching Speed10,000 templates/second
Template Storage10,000 iris templates
FAR10^-7
FRR10^-3
Get a Quotesales@opticsiris.com
ISO 9001NIST TestedMPS Certified

About This Product

The MD30 is an advanced iris scanner module with enhanced recognition capabilities. Supports iris capture, template matching, and image matching via USB connectivity. Built for integration into access control systems, attendance devices, and identity verification terminals. Operates reliably across -10C to 55C temperature range.

Category: Iris Modules
Brand: HOMSH / OpticIris
Origin: Wuhan, China

Order Information

Min. Order1 Unit
Delivery Time5-8 Working Days
PaymentT/T (Bank Transfer)
CertificationISO 9001

Related Products

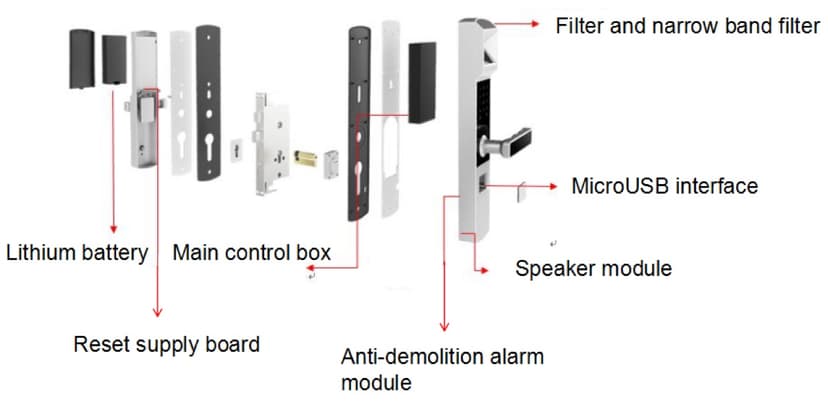

HS-QSOL-MI30 Iris Recognition Door Lock Development Kit
Iris Modules

HS-QSOL-MI30 Iris Recognition Door Lock Development Kit

View HS-QSOL-MI30 Iris Recognition Door Lock Development Kit Details

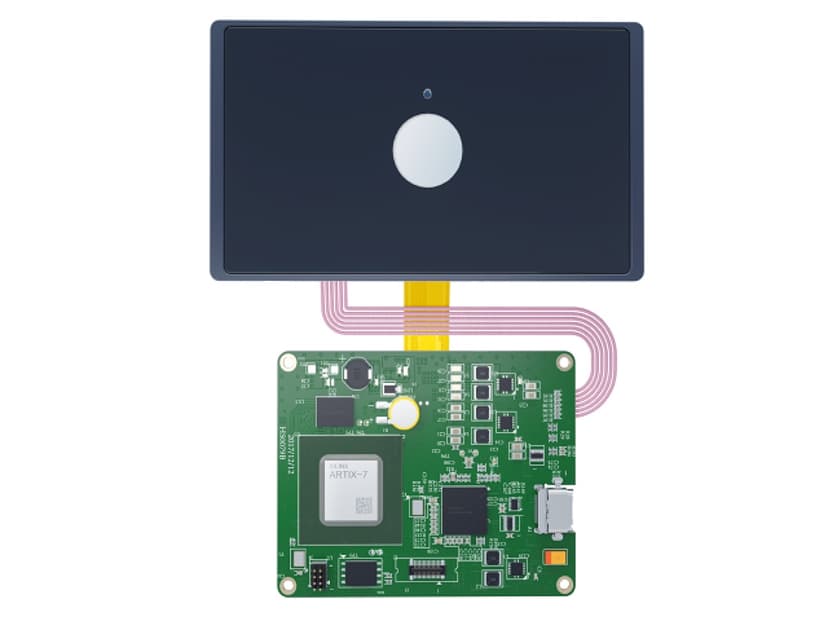

MC20-10000 USB 2.0 Iris Module with 1s Operating Humidity 640 X 480 lmage Resolution
Iris Modules

MC20-10000 USB 2.0 Iris Module with 1s Operating Humidity 640 X 480 lmage Resolution

View MC20-10000 USB 2.0 Iris Module with 1s Operating Humidity 640 X 480 lmage Resolution Details

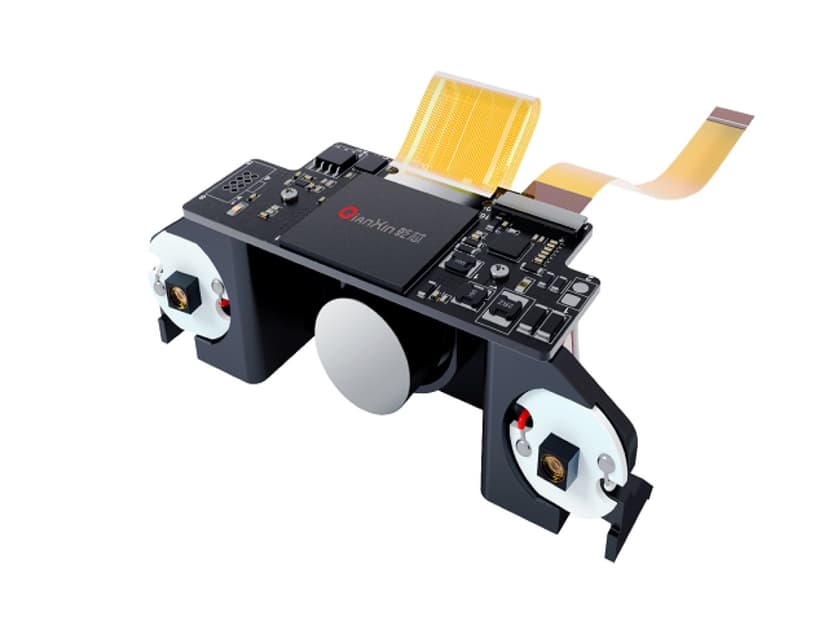

MI30-100 Iris Camera Module 3.2W Iris Recognition Module 850nm Imaging band
Iris Modules

MI30-100 Iris Camera Module 3.2W Iris Recognition Module 850nm Imaging band

View MI30-100 Iris Camera Module 3.2W Iris Recognition Module 850nm Imaging band Details

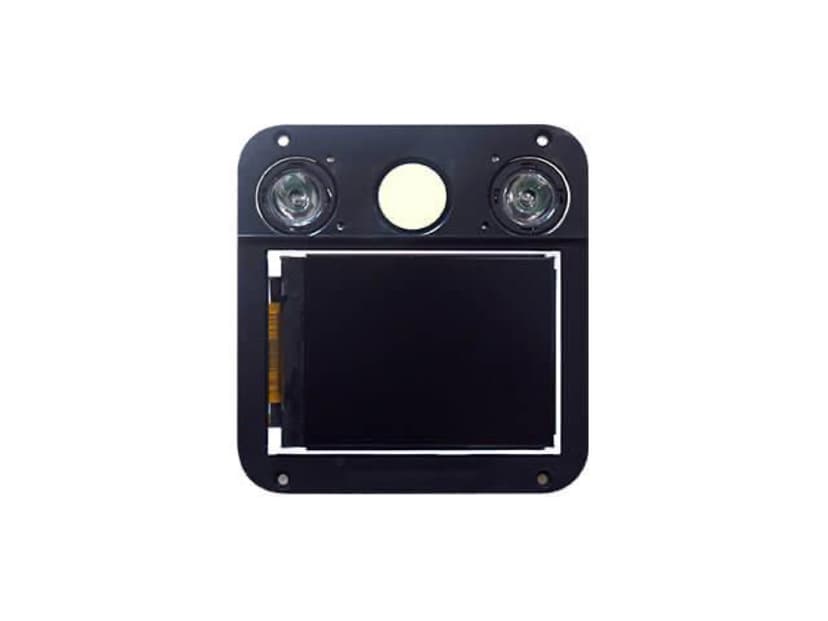

MD20-1000 Iris Scanner Module – Lightweight 68g Component with 0-6000 Lux & Low Power Consumption
