MC21 Iris Acquisition Module – High-Definition Dual-Camera Unit for Accurate Iris Capture & Fast Processing — Iris Modules by HOMSH Technologies
1 / 10
Iris ModulesID: 40588190

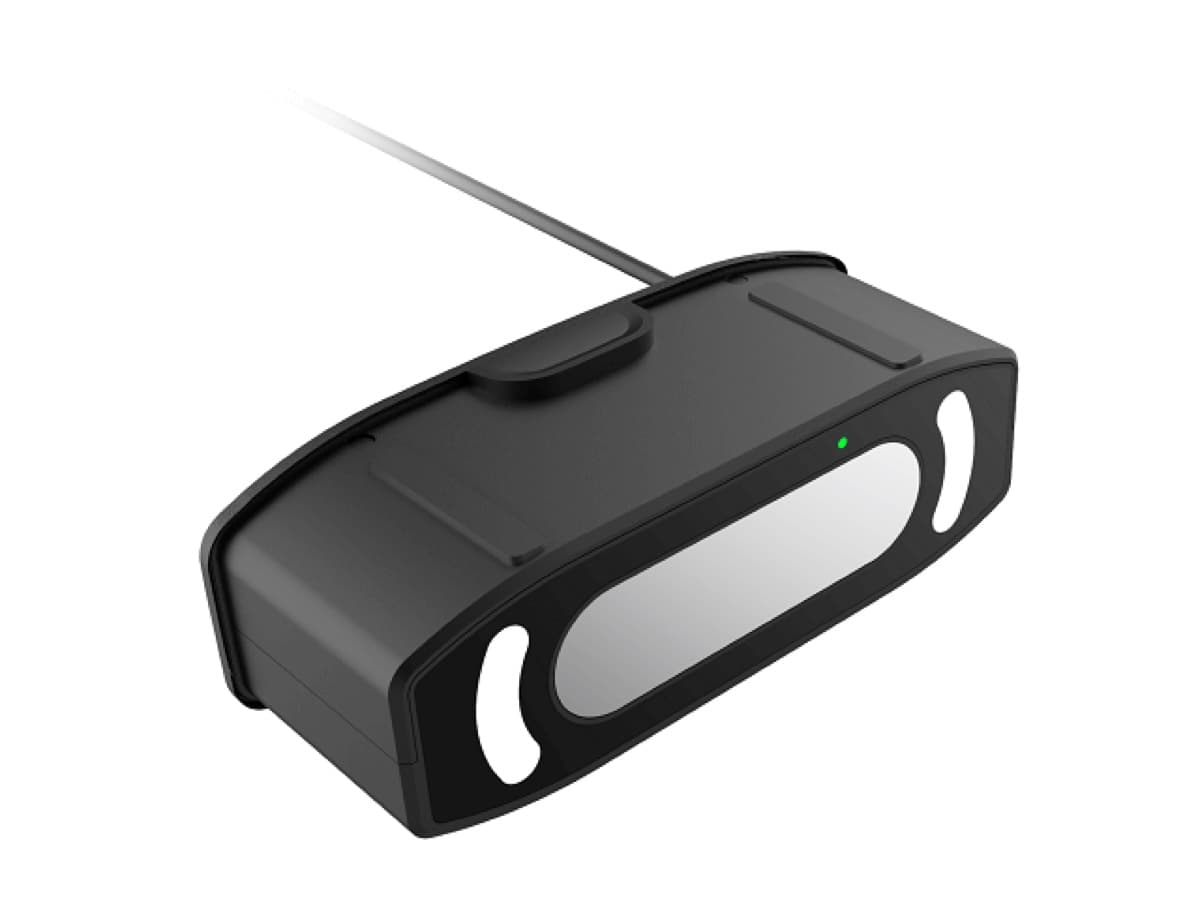

MC21 Iris Acquisition Module – High-Definition Dual-Camera Unit for Accurate Iris Capture & Fast Processing

The MC21 is a high-performance iris camera module featuring dual-lens binocular capture for enhanced accuracy. Designed for OEM integration with USB 2.0 interface, it supports real-time iris image acquisition and quality assessment. Suitable for access control, border security, and identity management systems.

Key Specifications

Product Dimensions (L*W*H)146*58* 51mm
Weight (Typical)117g
Operating Distance145mm-155mm
Operating Temperature-10°C to 55°C
Average Enrollment Time0.7 seconds
Average Recognition Time0.9 seconds
SpecificationDetails
ModelMC21
Product FunctionsIris capture, iris recognition
ConnectionUSB 2.0
Power Consumption3.5W
Dimensions (L×W×H)146 × 58 × 51mm
Weight117g
User Capacity500 individuals
Working Distance145-155mm
Recognition ModeSingle eye / Both eyes
Imaging Wavelength850nm
Spatial Resolution>8.0 lp/mm; >21 Pixel/mm
Image Resolution640 × 480
FAR10^-7
FRR10^-3
StandardsGB/T20979-2019
Get a Quotesales@opticsiris.com
ISO 9001NIST TestedMPS Certified

About This Product

The MC21 is a high-performance iris camera module featuring dual-lens binocular capture for enhanced accuracy. Designed for OEM integration with USB 2.0 interface, it supports real-time iris image acquisition and quality assessment. Suitable for access control, border security, and identity management systems.

Category: Iris Modules
Brand: HOMSH / OpticIris
Origin: Wuhan, China

Order Information

Min. Order1 Unit
Delivery Time5-8 Working Days
PaymentT/T (Bank Transfer)
CertificationISO 9001

Related Products

HS-QSOL-MI30 Iris Recognition Door Lock Development Kit
Iris Modules

HS-QSOL-MI30 Iris Recognition Door Lock Development Kit

View HS-QSOL-MI30 Iris Recognition Door Lock Development Kit Details

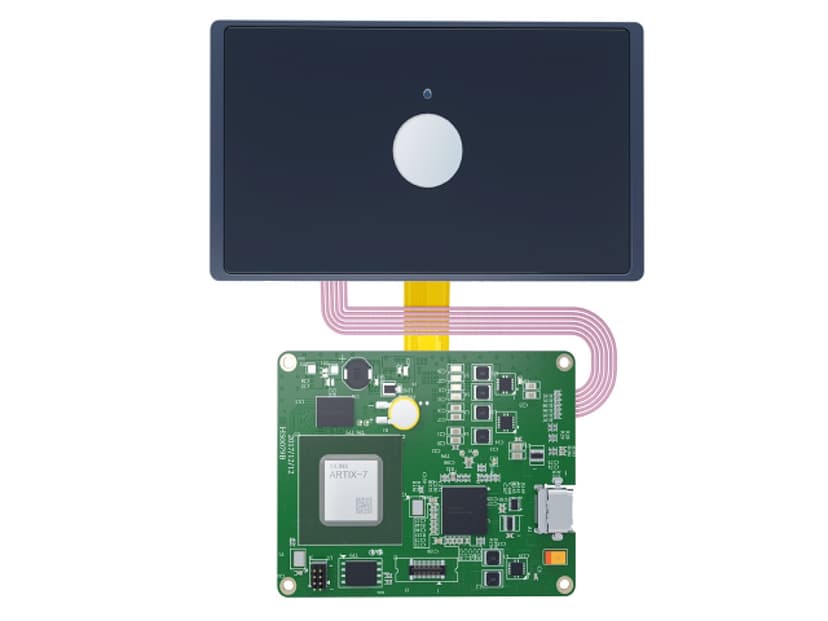

MC20-10000 USB 2.0 Iris Module with 1s Operating Humidity 640 X 480 lmage Resolution
